Rethinking Injection Mold Design
In today’s manufacturing environment, precision and efficiency are critical. Traditional injection molds have long depended on draft angles and slider mechanisms to ensure reliable part release. While effective, these features introduce trade-offs: reduced dimensional accuracy, compromised surface quality, higher costs, and increased complexity.
NetBit’s new white paper, Zero-Draft, Slider-Free Injection Mold Technology, presents a breakthrough approach that eliminates these limitations. By leveraging material shrinkage characteristics, optimized parting line designs, and advanced mold engineering, this technology delivers a new benchmark for product quality, dimensional precision, and manufacturing efficiency.
Key Benefits
- Cost Reduction – Lower machining, assembly, and maintenance costs by removing sliders.
- Dimensional Accuracy – Avoids draft-induced deviations, ensuring design fidelity.
- Extended Mold Life – Fewer moving parts mean reduced wear and longer service.
- Process Efficiency – Faster mold opening and closing reduces cycle times; cavity counts can scale up to 4–8.
- Superior Surface Quality – Flawless finishes with no draft or slider parting lines—ideal for high-end consumer products.
Remaining Challenges
While transformative, zero-draft, slider-free molding requires extremely high precision in mold manufacturing and material selection. Surface finish is currently limited to VDI-30 / MT11010, and maintaining process stability demands close coordination of injection equipment, temperature control, and operator expertise.
A New Standard in Injection Molding

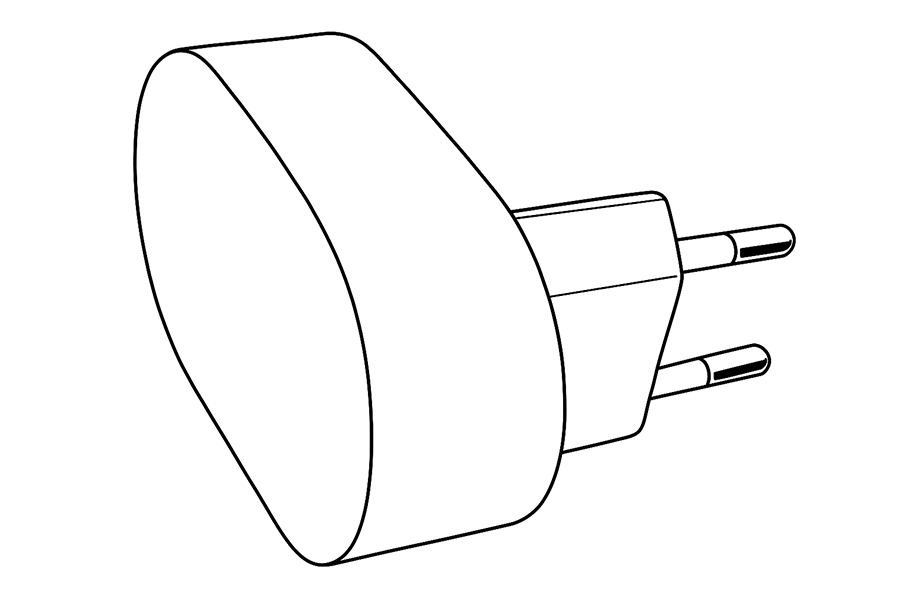

Zero-draft, slider-free molding addresses long-standing challenges in mold complexity, precision, and surface quality. With direct applications in Customer Premises Equipment (CPE)—including routers, gateways, set-top boxes, and ONTs—it is also poised for broader adoption in consumer electronics, automotive, and medical devices, where surface perfection and dimensional integrity are non-negotiable.
Download the full white paper here.
To find out more about NetBit’s products, contact us sales@netbit.com
